Erde 451

If its multiple bikes or quad etc. that you need to transport the 451 / 751 bike chassis' is the way to go. At only 106kg the 451 is suitable for carrying up to two off road bikes whilst being compact and light enough to store on it's end when not in use.

As with all Erde trailers, the 451's fully galvanised chassis will ensure rust is never an issue and the low slung design and independant suspension means trouble free loading and stable towing on the open road and with a huge range of options / accessories available, the 451 can be configured exactly the way you want itto carry.

Call us today to find out more.


  • Erde_451_single_rail__Graphite_wood_base_2.jpg

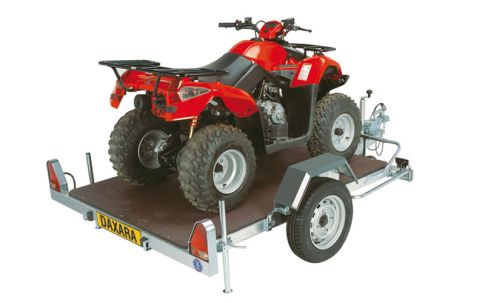

  • Erde 751 set up for quad bike
  • Erde 751 with Aluminium walkway
  • Marine Ply with graphite non-slip surface for 451 / 751

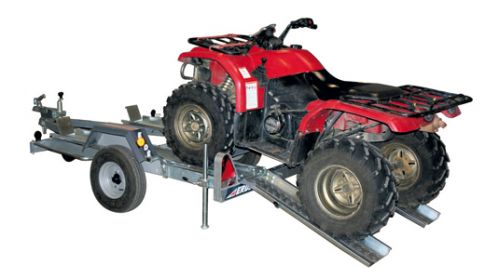

  • Erde 451 / 751 with Quad pack rails and ramps
  • Customer_Gallery_Bike_2.jpg
  • 751 set up to carry two track bikes
  • 751_motorbike_rail_on_wooden_base.jpg_resized.jpg
  • 751_with_2_rails_walk_board_and_concealed_spare_and_ramp.jpg_resized.jpg
  • Erde_451__751_2.jpg
  • Erde_751_3_bike_trailer.JPG

Features

Equipements   CH 451
1. Rail with front wheel holders 2 metres long   RA 450
2. Small loading ramp 1 metre long   RC 001
3. Reinforce loading ramp 1.5 metres long   RC 450
4. Running board L.200 x 38 cm   MP 451
5. Front bumpers protectors   RB 451
6. Telescopic jockey wheel (RJ200)   standard
7. Spare wheel   RS 500x10
8. Spare wheel support (Fixed under the chassis)   SP 451
9. Coupling lock   AV 001
10. Ratchet straps with hooks. 4.5 metres long   09191068
11. Propstands   BS 001
12. Quad trailer pack   PKPQ00

Specifications

Types Gross weight (kg) Outside dimensions (cm) Inside dimensions (cm) Overall dimensions (cm) Chassis ground clearance (cm) Wheels Empty weight (kg) Axle load (kg)

CH 451 450 344 200 x 117 306 x 160 x 70 40 500 x 10 106 450


Erde 451



Comes as a bare Chassis and jockey wheel ready to be customised as required



$1,290.00

Jockey Wheel
Jockey Wheel
$85.00
Erde Uniquely designed tie downs
Erde Uniquely designed tie downs
$49.00
1.5 mtr aluminium checker plate ramp
1.5 mtr aluminium checker plate ramp
$135.00
Universal Coupling Lock
Universal Coupling Lock
$20.00
Erde 451 Front Bumper
Erde 451 Front Bumper
$90.00
Erde 451 – Motorbike Rail
Erde 451 – Motorbike Rail
$110.00
Erde 451– Quad Pack
Erde 451– Quad Pack
$320.00
Erde 451 marine ply wooden base board
Erde 451 marine ply wooden base board
$190.00
Erde 451  – Aluminium Checkerplate Walkway
Erde 451 – Aluminium Checkerplate Walkway
$220.00
Prop Stands
Prop Stands
$105.00


Call us today on 1800 29 3733  to find out more
